Electric Gripper EFG series
For Advanced Medical, 3C and Industry Solutions
EFG series The Quality of Electric Gripper, The Price of Pneumatic Gripper
Built-in Controller
End clamps can be designed in various ways
Adjustable Clamping Forece(EFG-8)
Adjustable Stroke (EFG-20)
End clamps can be designed in various ways
The end-of-arm grippers can be replaced at any time. Users can design the clamp part based on the objects they need to clamp to ensure the gripper can accomplish the clamping task optimally.
In addition, our EFG series of motor-driven grippers are compatible with UR mechanical arms and have already been added to the URCap Library of UR mechanical arms where users can directly call from it.

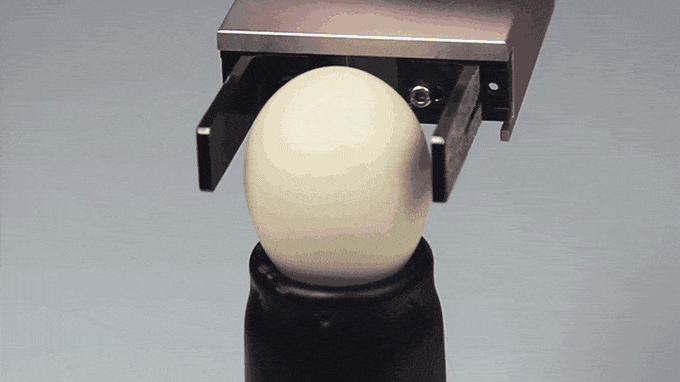

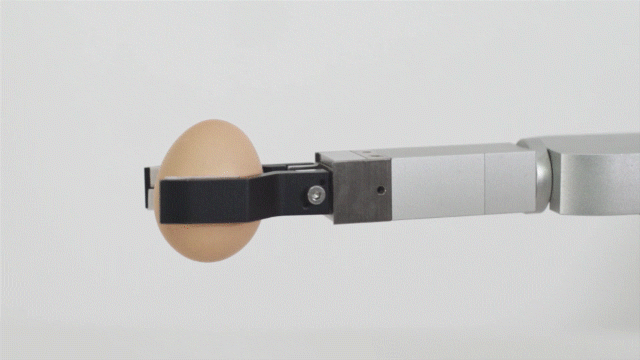

Clamp fragile and deformable objects (e.g. test tube, egg, circular ring)
Arrangement and sorting of parts placed in mess
Clamping in narrow places
No-air source environments like labs and hospitals
Electric gripper EFG-8
Total stroke： 8mm
Clamping force： 5-30N（Adjustale）
Dimensions： 30*24*94mm
Weight： 235g
Motor type： BLDC
Usage： Connect 24V power and ground; send high and low logic levels to control the opening and closing; send analog signals to control the clamping force.
Electric gripper EFG-20
Total stroke： 20mm
Clamping force： 800N
Dimensions： 44*30*124.7mm
Weight： 458g
Motor type： Servo
Usage： Connet 24V power and ground; send high and low logic levels to control the opening and closing; send pulse signals to control the stroke.
Electric gripper EFG-12
Total stroke： 12mm
Clamping force： 30N
Dimensions： 44*28*105.6mm
Weight： 342g
Motor type： Servo
Usage： Connet 24V power and ground; send high and low logic levels to control the opening and closing
Contact us if you need more info or support, hitbot@hitbot.cc
